Durable Oilfield Sucker Rods Barrel With Submersible Stainless Steel API Standard

Name: Durable Oilfield Sucker Rods Barrel With Submersible Stainless Steel API Standard
Brand: Zhongshi
Price: 1 USD

Quality Durable Oilfield Sucker Rods Barrel With Submersible Stainless Steel API Standard for sale

Brand Name : Zhongshi

Model Number : ZS

Certification : API, ISO, QHSE

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, D/A

Supply Ability : 1000 pcs/month

Delivery Time : 10~15 workdays

Packaging Details : Standard exported packing

Standard : API

Application : Petroleum production

Power : Machanical energy

Color : Required

Certificate : API 11AX

Warranty : 12 months

Contact Now

Durable Oilfield Sucker Rods Barrel With Submersible Stainless Steel API Standard

Product Description

Pump barrel is one of the main part of the API sucker rod pump .

Pump barrel processing and material:
Pump barrel: plain carbon steel plating (A1), ordinary carbon steel carbonitriding (B1), ordinary carbon steel carburizing (B2), low alloy steel nitride (B5).

Technical Specifications

Oil and Gas Production Subsurface Sucker Rod Pump(Rod Type)

Specification	Nominal Pump Bore (in)	Plunger Length(ft)	Max.O.D.(mm)	Rod(in)	Tubing(in)	Pump Constant (m3/d)	Stroke (m)
20-112RHBC	1.12	4~6	46.7	3/4	2 3/8	0.92	≤7.5
20-112RHBM			44.7
20-125RHBC	1.25		47.5	3/4	2 3/8	1.14
20-125RHBM			44.7
25-150RHBC	1.5		59.5	3/4	2 7/8	1.64
25-150RHBM			55.6
25-175RHBC	1.75		59.5	3/4	2 7/8	2.24
25-175RHBM			55.6
30-225RHBC	2.25		72.1	3/4	3 1/2	3.69
30-225RHBM			71.7

Features

Mechanical properties, surface finish and dimensional accuracy is higher than the standard requirements.

Corrosion resistance is strong, long service life, product size can be customized.

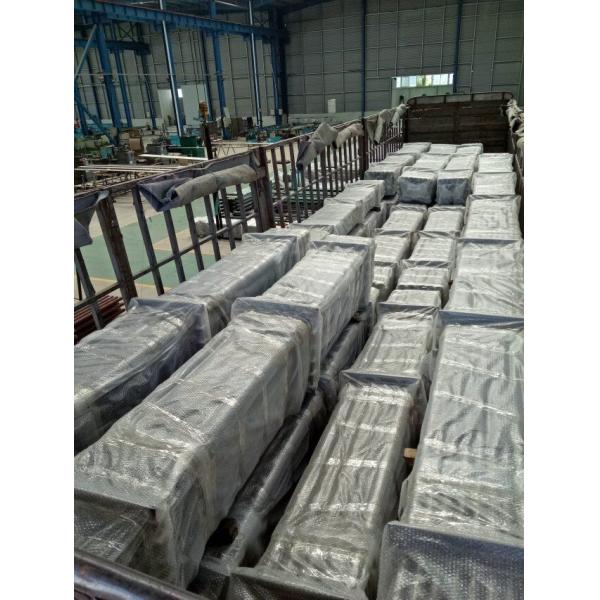

Pictures

Durable Oilfield Sucker Rods Barrel With Submersible Stainless Steel API Standard
